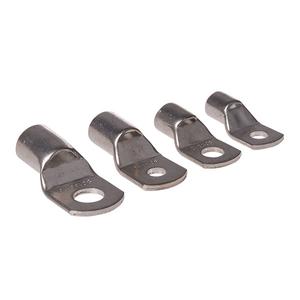

SC 窥口铜接线端头
* 产品介绍
产品材质：采用优质紫铜管制成
产品特点：采用优质亚锡电镀，防锈、耐腐蚀时间延长；良好的导电性和出色的电气机械性能 不易老化。
窥口便于观察进线情况，接线美观
产品特性：多道特殊电镀工艺程序，加强镀层附着力，降低电阻，稳定信号数据传输。压紧部位不断裂松开，
工作温度：-50°C耐热至150°C可正常使用
产品规格：见列表
使用方法：将电线剥开适当长度外皮，插入端子接线铜管部位，使用配套工具压紧即可
|
型 号 ITEM NO |

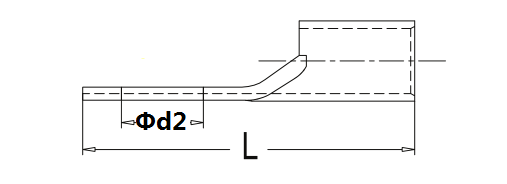

螺栓口直径 Screw dia. фd2(mm）
|

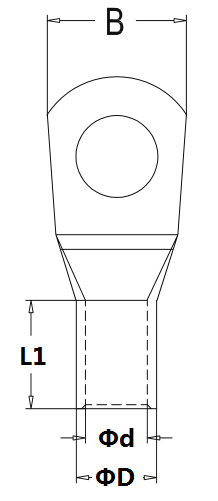

尺寸 Dimension (mm) |
导线截面 Cable size (mm2) |
|
B |
dФ |
DФ |
L |
L1 |
|
SC1.5-5 |
#10 |
5.3 |
8 |
1.8 |
3.3 |
16 |
7 |
1.5 |
|
SC2.5-4 |
#8 |
4.3 |
8 |
2.4 |
4 |
19.6 |
8 |
2.5 |
|
SC2.5-5 |
#10 |
5.3 |
|
SC2.5-6 |
1/4 |
6.5 |
10 |
|
SC4-4 |
#8 |
4.3 |
10 |
3.1 |
4.8 |
21 |
9 |
4 |
|
SC4-5 |
#10 |
5.3 |
|
SC4-6 |
1/4 |
6.5 |
|
SC6-4 |
#8 |
4.3 |
10 |
3.8 |
5.5 |
25.5 |
9 |
6 |
|
SC6-5 |
#10 |
5.3 |
|
SC6-6 |
1/4 |
6.5 |
|
SC10-6 |
1/4 |
6.5 |
12.6 |
4.5 |
6.2 |
27 |
10 |
10 |
|
SC10-8 |
5/16 |
8.4 |
|
SC16-6 |
1/4 |
6.5 |
12.6 |
5.5 |
7.2 |
29.5 |
10.5 |
16 |
|
SC16-8 |
5/16 |
8.4 |
|
SC25-6 |
1/4 |
6.5 |
15 |
7 |
9 |
33 |
12 |
25 |
|
SC25-8 |
5/16 |
8.4 |
|
SC25-10 |
3/8 |
10.5 |
|
SC35-6 |
1/4 |
6.5 |
15.2 |
8.2 |
10.6 |
38 |
14.2 |
35 |
|
SC35-8 |
5/16 |
8.4 |
|
SC35-10 |
3/8 |
10.5 |
|
SC50-8 |
5/16 |
8.4 |
18.5 |
10 |
13 |
44.5 |
18 |
50 |
|
SC50-10 |
3/8 |
10.5 |
|
SC50-12 |
1/2 |
13 |
|
SC70-8 |
5/16 |
8.4 |
21.4 |
11.5 |
15 |
54.2 |
20.4 |
70 |
|
SC70-10 |
3/8 |
10.5 |
|
SC70-12 |
1/2 |
13 |
|
SC95-10 |
3/8 |
10.5 |
25.5 |
13.5 |
17.4 |
59 |
23.4 |
95 |
|
SC95-12 |
1/2 |
13 |
|
SC120-10 |
3/8 |
10.5 |
28.3 |
15.5 |
19.9 |
66.7 |
24.6 |
120 |
|
SC120-12 |
1/2 |
13 |
|
SC120-14 |
9/16 |
15 |
|
SC120-16 |
5/8 |
17 |
|
SC150-12 |
1/2 |
13 |
31 |
17 |
21.7 |
74.5 |
29.5 |
150 |
|
SC150-14 |
9/16 |
15 |
|
SC150-16 |
5/8 |
17 |
|
SC185-12 |
1/2 |
13 |
34.2 |
19 |
24 |
81.4 |
32.5 |
185 |
|
SC185-14 |
9/16 |
15 |
|
SC185-16 |
5/8 |
17 |
|
SC240-14 |
9/16 |
15 |
39 |
21.5 |
27 |
94 |
35.5 |
240 |
|
SC240-16 |
5/8 |
17 |
|
SC240-18 |
11/16 |
19 |
|
SC300-14 |
9/16 |
15 |
44 |
24.5 |
31 |
103.2 |
42 |
300 |
|
SC300-16 |
5/8 |
17 |
|
SC300-18 |
11/16 |
19 |
|
SC300-20 |
3/4 |
21 |
|
SC300-22 |
7/8 |
23 |
|
SC300-24 |
15/16 |
25 |
|
SC400-14 |
9/16 |
15 |
51 |
27.5 |
35.5 |
120.2 |
47 |
400 |
|
SC400-16 |
5/8 |
17 |
|
SC400-18 |
11/16 |
19 |
|
SC400-20 |
3/4 |
21 |
|
SC400-22 |
7/3 |
23 |
|
SC400-24 |
15/16 |
25 |
|
SC500-14 |
9/16 |
15 |
56 |
31 |
40 |
127 |
47.5 |
500 |
|
SC500-16 |
5/8 |
17 |
|
SC500-18 |
11/16 |
19 |
|
SC500-20 |
3/4 |
21 |
|
SC500-22 |
7/8 |
23 |
|
SC500-24 |
15/16 |
25 |
|
SC630-14 |
9/16 |
15 |
63 |
34.5 |
44.5 |
140 |
56 |
630 |
|
SC630-16 |
5/3 |
17 |
|
SC630-18 |
11/16 |
19 |
|
SC630-20 |
3/4 |
21 |
|
SC630-22 |
7/3 |
23 |
|
SC630-34 |
11/16 |
25 |
|
